3 Ply Fully Automatic Mask Making Machine

Wondery Trading Co., Ltd
Contact Now

3 Ply Fully Automatic Mask Making Machine

Brand Name : OEM

Model Number : OEM

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : Negotiable

Supply Ability : 4 set per month

Delivery Time : 20 days

Packaging Details : wooden case

Product Name : Disposable face mask manufacturing machine

Production Capacity : 80-120pcs/min

Voltage : 220V/50HZ

Feature : High capacity

Power(W) : 12.5kw

Weight : 900 kg

Dimension(L*W*H) : L5100mm*K3200mm*H1750mm

Automatic Grade : Automatic

Applicable : Making Disposable Face Mask

Contact Now

3 Ply Fully Automatic Mask Making Machine

Introduction

Our flat face mask product line is manufactured for the fast production of a large quantity of flat mask. It contains 4 main
units: raw material feeding, slice forming machine, distributing machine, ear loop welding and stacking machine. All the units
work together full automatically with color touch screen controls.

1) It is well designed with qualified technology to achieve a stable industrial mask production. The raw material rolls are
delivered by the rotating wheels which have tension controls to achieve a very flat mask.
2) Photoelectric detection on all rolls, the master controller will stop the machine and remind the operator in case of material
running out.
3) The slice forming machine contains folding, flattening, nasal line feeding and cutting, mask forming and cutting.
4) The mask slice distribution machine distributes to 1 to 4 lines automatically through the conveyor belts.
5) Ear loop welding machine cuts, positions the ear loop line and welds it through digital ultrasonic. The ear loop line
arrangement unit puts the lines into the main rnask range which enables the masks to be packaged in a standard size.
6) The MCS unit counts the mask numbers of each production cycle and stacks each package in a certain quantity according to the
program setting and then delivers to the collecting belt for manual or automatic packing.


Features


1. Colorful touch screen and PLC adapted to achieve a fully automatic operation. √ Built-in programs and easy regulation working speed suitable for different production plans.
2. Adjustable folding device and programmable welding points.
3. High performance air cylinder, servo motor and driver, fast-working and highly stable.
4. Digital ultrasonic units with auto frequency tracing function to enhance the long lifetime of key components. √Photoelectric sensors monitoring raw material, all units working situations, auto-stop and alarm in case of material running out and other breaks, avoiding mistake and reducing waste.
5. Raw material tension controls.
6. Suitable for producing flat face mask with I—4 lays (active carbon material can be used as stuffing).
7. With counters for total production and for each batch; the quantity for each batch is programmable.
8. Optional to produce mask of different dimensions by replacing some components.

Name

Automatic Disposable Mask Machine

Mask Material

Non-Woven Fabrics

Machine Weight

900 kg

Mask types

Flat Face Mask

Production Capacity

80-120pcs/min

Layers of Mask

3~4

Power

12.5kw

Voltage:

220V/50HZ

Automatic Grade

Full-Automatic, Automatic

Dimension(L*W*H)

L5100mm*K3200mm*H1750mm

Feature

High capacity

Core Components

PLC, Engine, Bearing, Gearbox, Motor

3 Ply Fully Automatic Mask Making Machine


Product Tags:

Disposable Automatic Mask Making Machine



3 Ply Fully Automatic Mask Making Machine



12.5kw Automatic Facial Mask Machine


Buy cheap 3 Ply Fully Automatic Mask Making Machine product

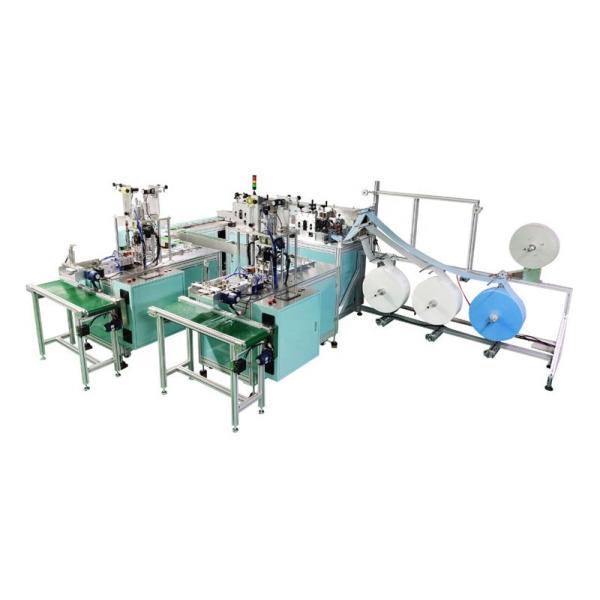

3 Ply Fully Automatic Mask Making Machine Images
